Pixel Pitch:5.71mm/6.66mm/8mm/10mm
Module Size: 480*320*19.5mm
Cabinet Size: 960*960*97mm
Cabinet Weight: 29Kg

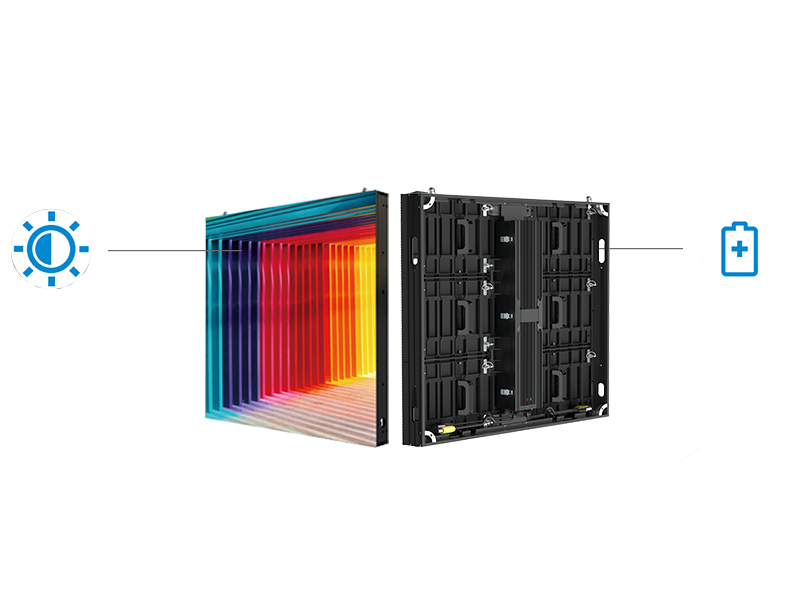

Ultra-High brightness, can reach 10000nits,image visible under direct-sunlight.Energy-saving design,lower power consumption, save operating expenses.

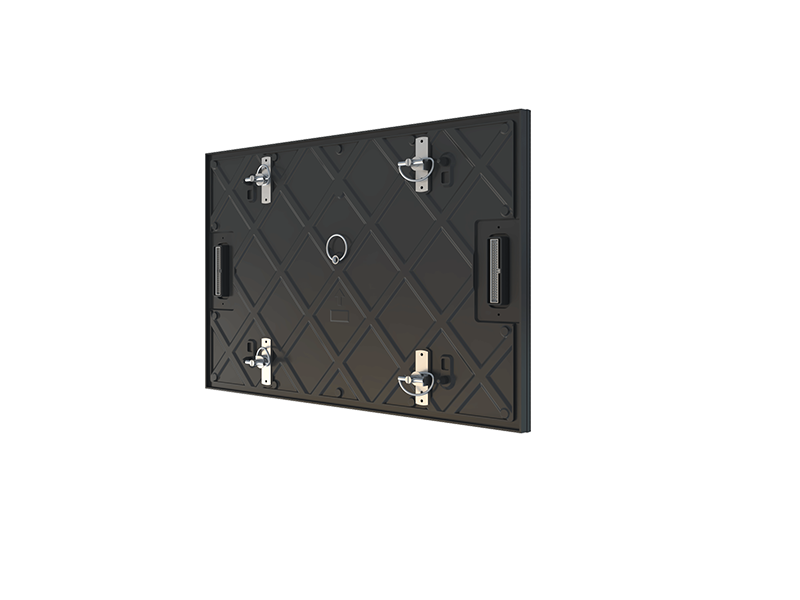

Module back shell uses CNC aluminum materials, high flatness, excellent heat dissipation, longer lifespan.

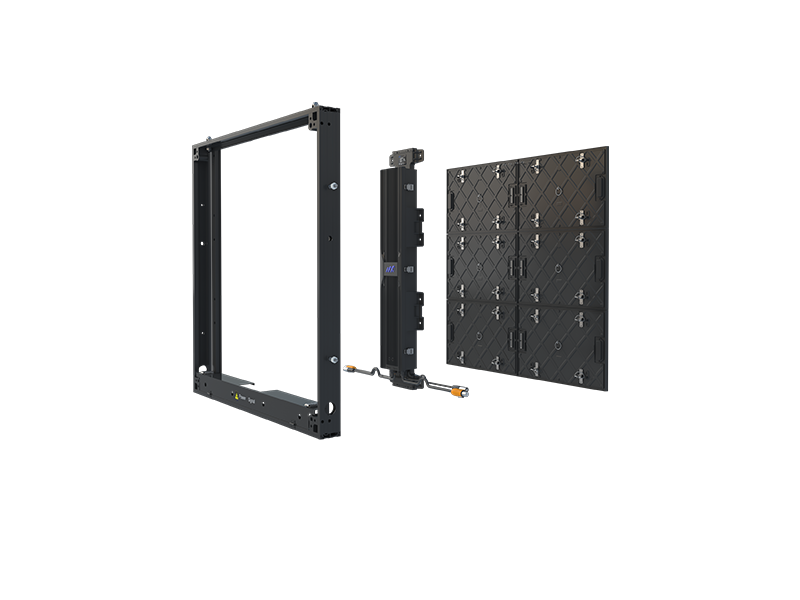

Aluminum profile cabinet frame, ultra-light weight: 29kg/pc. Front maintenance, saving installation space and labor cost.

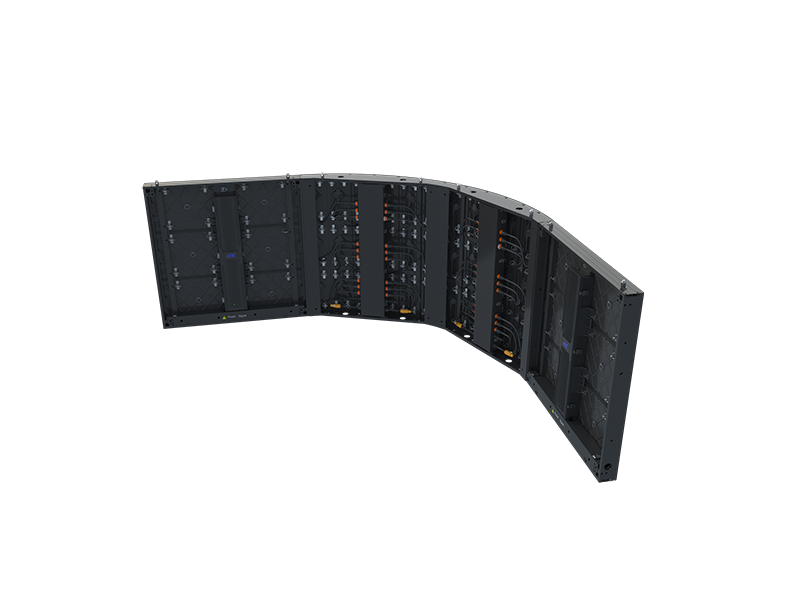

Matched curve and corner solution optional, meeting with more installation requirements perfectly
| Pixel Pitch /mm | 5.71 | 6.66 | 8 | 10 | |
|---|---|---|---|---|---|
| Module size /mm | 480*320*19.5 | ||||
| Cabinet size (mm) | 960*960*97 | ||||
| Cabinet resolution (pixels) | 168*168 | 144x144 | 120x120 | 96x96 | |
| Pixel density (Pixels/m²) | 30625 | 22500 | 15625 | 10000 | |
| Cabinet Weight（kg） | 29 | ||||
| Cabinet Materials | Aluminum profile+ die-casting aluminum | ||||
| Brightness (Nit) | 6000nits /10,000nits optional | ||||
| Refresh rate (Hz) | 1920/3840 | ||||
| Gray level (Bit) | 14 | ||||
| Contrast ratio | 5000:1 | ||||
| View angle (H/V) | ±80°/±60° | ||||
| Power consumption (Max/Aver.w/m²) | 650/220 | ||||
| Input voltage（V） | 100-240 | ||||
| Working tempreature | -20℃-50℃ | ||||
| Working Humidity | 10%RH-95%RH | ||||
| Signal type | DVI | ||||
| Control distance | Cat-5 lan cable:<100m; single-model fiber cable:<10km | ||||
