Pixel Pitch:2.6mm/2.9mm/3.91mm/4.81mm
Module Size: 250*250*3mm
Cabinet Size: 1000*500*45mm
Cabinet Weight: 10Kg
Super light weight 20kg/sqm and 45 mm ultra-slim design.
Modules without back-shell and PCB direct to cabient design helps to dissipate heat more efficiently.
PSU+HUB+Receiving card can be maintained from front.

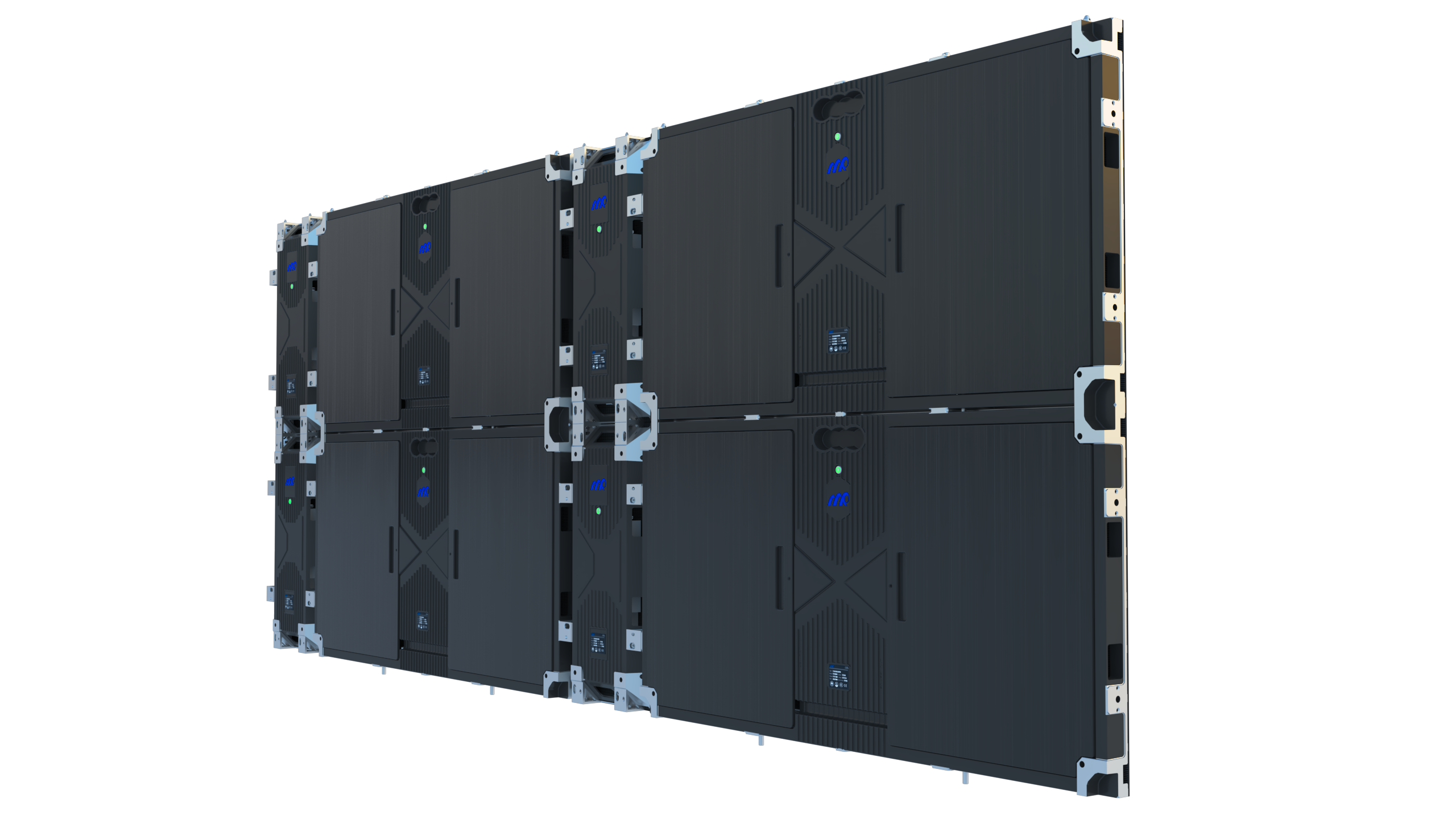

support stacking, wall mounting, hanging

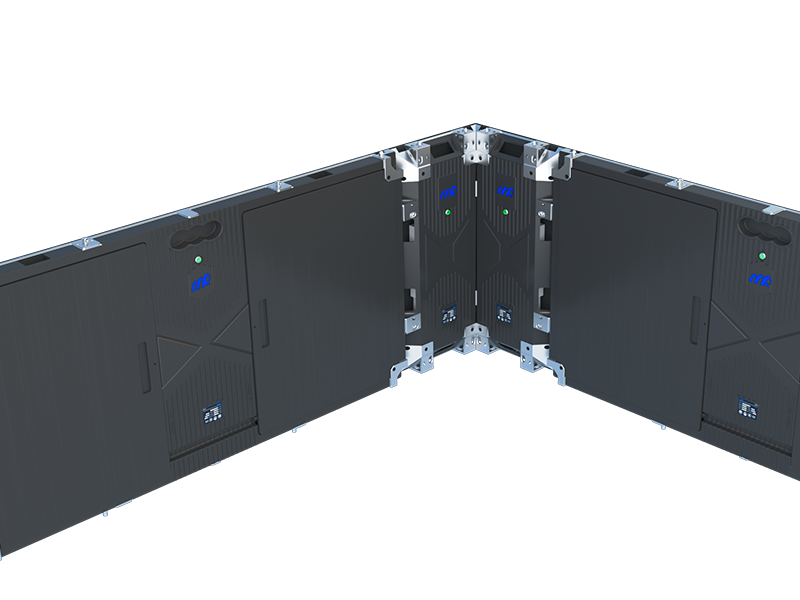

45°cut-corner optional design for right angle splicing
| Pixel Pitch /mm | 1.95 | 2.6 | 3.91 |
| Module size /mm | 250*250*3 | ||
| Cabinet size (mm) | 1000*500*45 | ||
| Module resolution (pixels) | 128*128 | 96*96 | 64*64 |
| Pixel density (Pixels/m²) | 262144 | 147456 | 65536 |
| Cabinet Weight（kg） | 12 | ||
| Brightness (Nit) | 650 | 700 | |
| Refresh rate (Hz) | 2880-3840 | ≥3840 | |
| Gray level (Bit) | 13-14 | ||
| Contrast ratio | ≥3000:1 | ||
| View angle (H/V) | 160°/120° | ||
| Power consumption (Max/Aver.w/m²) | 490/170 | 530/175 | 500/170 |
| Input voltage（V） | 100-240 | ||
| Working tempreature | -10℃-40℃ | ||
| Working Humidity | 10%RH-60%RH（No condensation） | ||
| Control distance | Cat-5 lan cable:<100m; single-model fiber cable:<10km | ||
